Shear Beam Load Cells

Shear Beam Load Cells

Model 3410/3411 Features:

  • Capacities 250 - 2000kg & 1000 - 4000lbs
  • OIML R60 and NTEP approved
  • Steel and stainless steel construction
  • IP67 protection
  •

Optional Feature:

  • EEx ia IIC T6 hazardous area approval
  • FM approval available



Description:

Model 3410 is a low profile shear beam load cell designed for high accuracy platform scales, pallet scales and process weighing applications. It has high immunity to shock or side loading and is available in 2 or 3mV/V sensitivity. Approved to OIML, NTEP standards. For hazardous environments this load cell is available with EEx ia IIC T6 level of European approval.

Nickel plating and full environmental sealing assures long term reliability. A stainless steel option is available for the lb versions for use in harsh or corrosive environments.

The two additional sense wires feedback the voltage reaching the load cell. Complete compensation of changes in lead resistance due to temperature change and/or cable extension is achieved by feeding this voltage into the appropriate electronics.



Applications:

  • Low profile platforms
  • Pallet truck weighing
  • Tank and silo weighing

Outline Dimensions in mm

Alloy Steel Shear Beam Load Cell - Model 3420/3421 Features:

  • Capacity range: 5,000 - 10,000lbs
  • NTEP approved
  • Steel and stainless steel construction
  • IP67 protection
  •

Optional Feature:

  • FM approval available

Applications:

  • Low profile platforms
  • Pallet truck weighing
  • Tank and silo weighing



Description:

Model 3420 is a low profile shear beam load cell designed for high accuracy platform scales, pallet scales and process weighing applications.

It has a high immunity to shock or side loading, and is approved to NTEP standards. For hazardous environments this load cell is available with Factory Mutual approval.

Nickel plating and full environmental sealing assure long term reliability. A stainless steel option is available for use in harsh or corrosive environments.

The two additional sense wires feedback the voltage reaching the load cell. Complete compensation of changes in lead resistance due to temperature change and/or cable extension can be achieved by feeding this voltage into the appropriate electronics.


Outline Dimensions in mm

Stainless Steel Shear Beam Load Cell - Model 3510 Features:

  • Capacities 300 - 5000kg, 1000 - 5000lbs
  • Stainless steel construction
  • OIML R60 and NTEP approved
  • Hermetically sealed to IP68
  • Specially designed for harsh environment

Optional Feature:

  • EEx ia IIC T6 hazardous area approval
  • FM approval available
  • 1100O impedance available
  •

Applications:

  • Low profile platforms
  • Pallet truck weighing
  • Tank and silo weighing
  • Harsh environment weighing
  • Food industry weighing
  •



Description:

Model 3510 provides the weighing industry with the ultimate protection necessary for today’s hostile environments in an economical low profile range suitable for platform scale manufacture.

Its low profile and all welded sealing combined with high accuracy makes this load cell ideally suited for low profile platforms, pallet truck weighers, tanks and silos. The guide slots incorporated into the upper and lower mounting faces enable manufacturers to easily position the load cell.

Hermetically sealed against moisture, the construction of the model 3510 in combination with a polyurethane dual shielded cable, enables continuous operation in harsh environments while maintaining a high operating specification.

The two additional sense wires feedback the voltage reaching the load cell. Complete compensation of changes in lead resistance due to temperature change and/or cable extension, is achieved by feeding this voltage into the appropriate electronics.


Outline Dimensions in mm

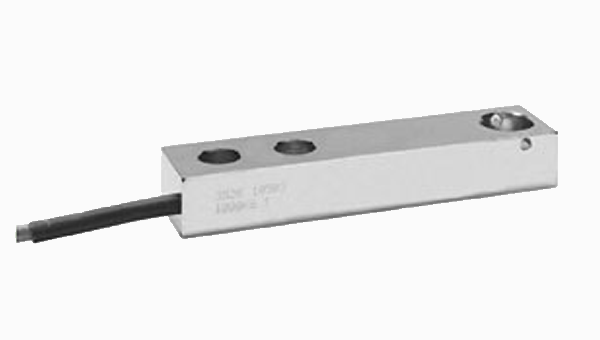

Stainless Steel Shear Beam Load Cell - Model 3520 Features:

  • Capacities 500 - 2000kg
  • OIML R60 approved
  • Stainless steel construction
  • Sealed to IP67



Optional Feature:

  • EEx ia IIC T6 hazardous area approval

Applications:

  • Low profile platforms
  • Pallet truck weighing
  • Tank and silo weighing
  • Food industry platforms

Description:

Model 3520 is a low profile shear beam load cell designed for high accuracy platform scales, pallet scales and process weighing applications. It has high immunity to shock or side loading, and is available in 2mV/V sensitivity and is approved to OIML 6000 divisions.

Sealed to IP67 as standard the 3520 is ideally suited for harsh industrial applications where performance and durability are paramount. The extremely low profile makes this load cell ideal for today’s modern low profile industrial platforms.



Outline Dimensions in mm
