Granular Filling & Packaging
APPLICATION
- For packing granular & free flowing products like tea, rice, sugar, pulses, etc.
SALIENT FEATURES

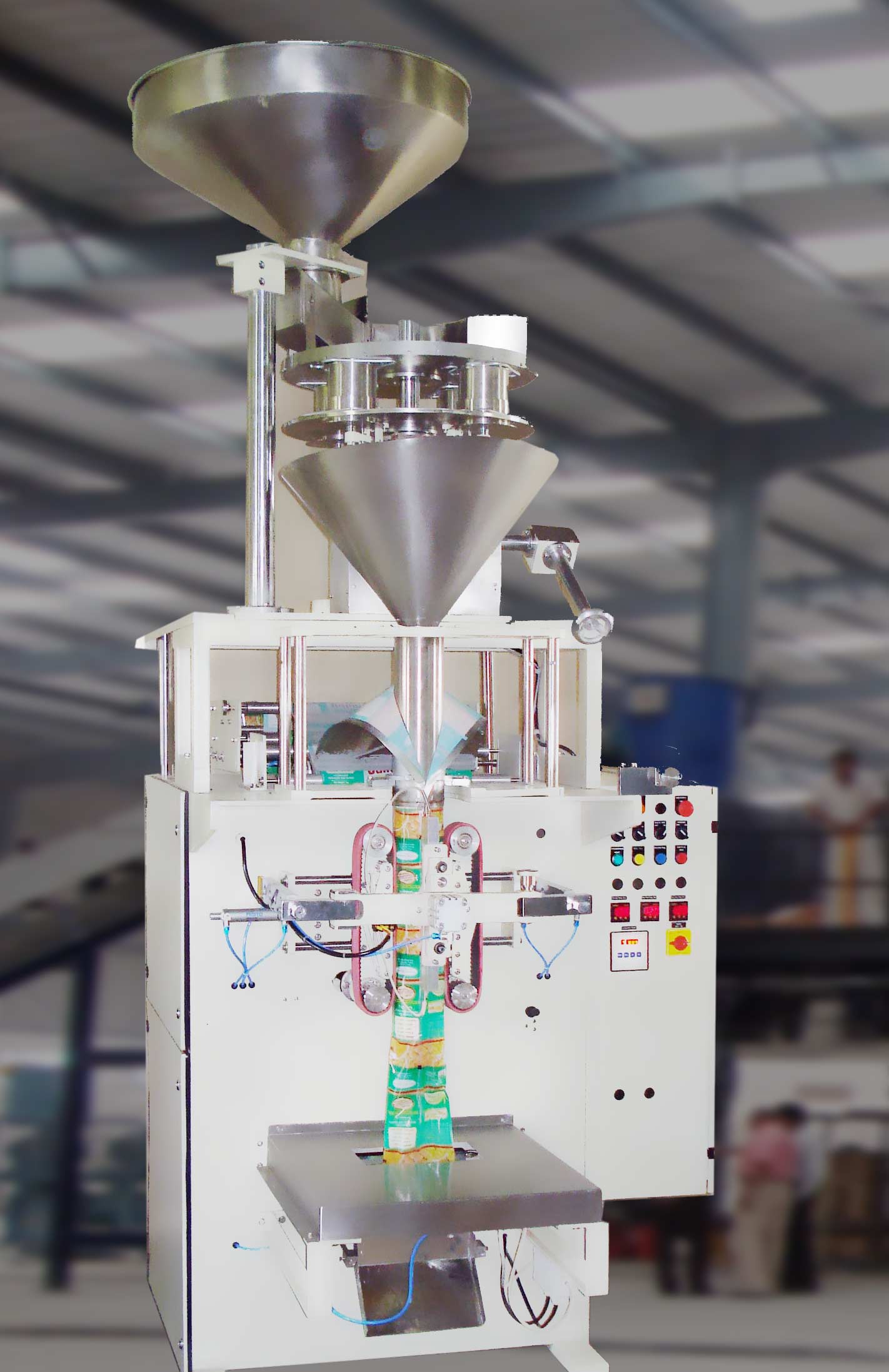

- Volumetric filling machine suitable for filling granular & free flowing products.
- Consists of a set of rotating discs between which 4-sets of telescopic cups are fitted.
- Driven by geared motor with variable frequency drive for control.
- Adjustable cup volume up to +/- 15% with same cup size parts due to telescopic cup design.
MODEL
- MA10..VCF-100
- MA10..VCF-150
- MA10..VCF-250
- MA10..VCF-450
MAX. BAG WIDTH
- 125 mm
- 165 mm
- 260 mm
- 450 mm
MAX. OUTPUT
- 80 packs/min.
- 65 packs/min.
- 40 packs/min.
- 15 packs/min.
FILL WEIGHT
- 50g
- 50g - 250g
- 250g - 1,000g
- 500g - 10,000kg
